Please click to download the spreadsheet of the characteristic values of grooved gaskets.
Dichtung Träger Dichtg. KH KN empfl. Rauht. mind. Breite zul. Temp. zul. Druck Einbau Min. Betrieb Max. Faktor Vorver- formung Betr. Zust. Grafit Auflage 0,5 mm dick Werkstoffe Dicke Einsatz- grenzen zul. Flächenpressungen Dichtungsquerschnitte PTFE Auflage 0,5 mm dick ⱴ 1.4541 1.4541 4.0 (+2x0,5) 4.0 (+2x0,5) X X 8-25 8-25 7 7 20 200 300 400 500 550 20 200 250 400* 400* 40 40 500 450 420 390 350 335 450 390 330 1,1 1,1 KH 14 bD KH 0,8bD KH 14 bD KH 0,8bD Ko ●KD N mm K1 mm σbo N mm² m σvu N mm² Pzul. bar °C Bd mind. mm Rz µm K1 mm hD mm

GROOVED GASKETS

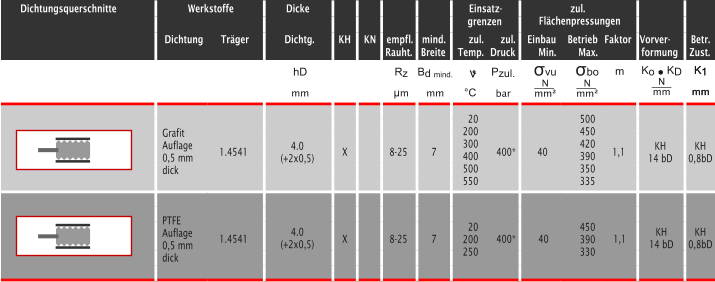

Characteristic values in the case of grooved gaskets

* Dependent on: Flange type, temperature, pressure, media The maximum permissible, basically controllable temperature at the sealing surface in the case of continuous use with graphite is 460 °C. Information for temperatures from 480 °C - 550 °C is based on laboratory data.
Apollon InduTec GmbH Kurt-A.-Körber-Chaussee 73 - Halle J | 21033 Hamburg | Germany Telefon +49 (0)40 237 67 13 - 10 | Fax +49 (0)40 361 661 53 info@apollon-indutec.de

ENGLISH

DEUTSCH
SPECIFICATIONS We deliver according to the following standards: EN 1514-2 and works standards suitable for flanges pursuant to ASME B 16.20, ASME B 16.47, ANSI B 16.5 and pursuant to DIN.
PROFILES Type KPC – grooved gasket with centring ring. Centring ring with and without predetermined breaking point. Type KPC-T grooved gasket with loose centring ring. Type KP – grooved gasket for groove- and spring flanges Type KPC-B – grooved gasket with centring ring and spherical profile
