GROOVED GASKETS

63-160 36,0 42,0 47,0 52,0 62,0 69,0 81,0 100,0 115,0 138,0 162,0 190,0 215,0 248,0 300,0 356,0 415,0 474,0 –- 588,0 700,0 812,0 886,0 994,0 1.110,0 1.334,0 –- –- –- –- –- –- –- –- –-
PN DN 10 15 20 25 32 40 50 65 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1.000 1.200 1.400 1.600 1.800 2.000 2.200 2.400 2.600 2.800 3.000

Type KPC

Norm: EN 1514-6
Flanges: DIN
Pressure: PN 10 - 400
KP and KPC-T
d1 22,0 26,0 31,0 36,0 46,0 53,0 65,0 81,0 95,0 118,0 142,0 170,0 195,0 220,0 270,0 320,0 375,0 426,0 480,0 530,0 630,0 730,0 830,0 930,0 1.040,0 1.250,0 1.440,0 1.650,0 1.850,0 2.050,0 2.250,0 2.460,0 2.670,0 2.890,0 3.100,0
250-400 d2 36,0 42,0 47,0 52,0 66,0 73,0 87,0 103,0 121,0 146,0 178,0 212,0 245,0 280,0 340,0 400,0 –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –-
16 46,0 51,0 61,0 71,0 82,0 92,0 107,0 127,0 142,0 162,0 192,0 217,0 247,0 272,0 328,0 383,0 443,0 495,0 555,0 617,0 734,0 804,0 911,0 1.011,0 1.128,0 1.342,0 1.542,0 1.764,0 1.964,0 2.168,0 2.378,0 –- –- –- –-
10 46,0 51,0 61,0 71,0 82,0 92,0 107,0 127,0 142,0 162,0 192,0 217,0 247,0 272,0 327,0 377,0 437,0 489,0 539,0 594,0 695,0 810,0 917,0 1.017,0 1.124,0 1.341,0 1.548,0 1.772,0 1.972,0 2.182,0 2.384,0 2.594,0 2.794,0 3.014,0 3.228,0
25 46,0 51,0 61,0 71,0 82,0 92,0 107,0 127,0 142,0 168,0 194,0 224,0 254,0 284,0 340,0 400,0 457,0 514,0 –- 624,0 731,0 833,0 942,0 1.042,0 1.154,0 1.364,0 1.578,0 1.798,0 2.000,0 2.230,0 –- –- –- –- –-
64 56,0 61,0 –- 82,0 –- 103,0 113,0 137,0 148,0 174,0 210,0 247,0 277,0 309,0 364,0 424,0 486,0 543,0 –- 657,0 764,0 879,0 988,0 1.108,0 1.220,0 1.452,0 –- –- –- –- –- –- –- –- –-
40 46,0 51,0 61,0 71,0 82,0 92,0 107,0 127,0 142,0 168,0 194,0 224,0 265,0 290,0 352,0 417,0 474,0 546,0 571,0 628,0 747,0 852,0 974,0 1.084,0 1.194,0 1.398,0 1.618,0 1.830,0 –- –- –- –- –- –- –-
100 56,0 61,0 –- 82,0 –- 103,0 119,0 143,0 154,0 180,0 217,0 257,0 287,0 324,0 391,0 458,0 512,0 572,0 –- 704,0 813,0 950,0 –- –- –- –- –- –- –- –- –- –- –- –- –-
250 67,0 72,0 –- 83,0 –- 109,0 124,0 153,0 170,0 202,0 242,0 284,0 316,0 358,0 442,0 536,0 –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –-
160 56,0 61,0 –- 82,0 –- 103,0 119,0 143,0 154,0 180,0 217,0 257,0 284,0 324,0 388,0 458,0 –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –-
400 d3 67,0 –- –- 104,0 –- 135,0 150,0 192,0 207,0 256,0 301,0 348,0 402,0 442,0 –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –-
d1 d2 d3 4 mm 5 mm
320 67,0 72,0 –- 92,0 –- 119,0 134,0 170,0 190,0 229,0 274,0 311,0 358,0 398,0 488,0 –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –- –-
10-40 36,0 42,0 47,0 52,0 62,0 69,0 81,0 100,0 115,0 138,0 162,0 190,0 215,0 240,0 290,0 340,0 395,0 450,0 506,0 560,0 664,0 770,0 876,0 982,0 1.098,0 1.320,0 1.522,0 1.742,0 1.914,0 2.120,0 2.328,0 2.512,0 2.728,0 2.952,0 3.166,0
Apollon InduTec GmbH Kurt-A.-Körber-Chaussee 73 - Halle J | 21033 Hamburg | Germany Telefon +49 (0)40 237 67 13 - 10 | Fax +49 (0)40 361 661 53 info@apollon-indutec.de

ENGLISH

DEUTSCH

SPECIFICATIONS We deliver according to the following standards: EN 1514-2 and works standards suitable for flanges pursuant to ASME B 16.20, ASME B 16.47, ANSI B 16.5 and pursuant to DIN.

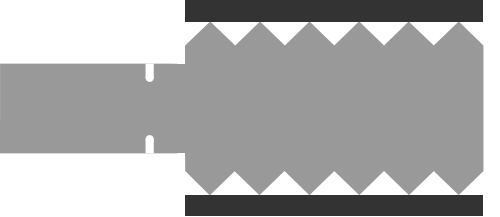

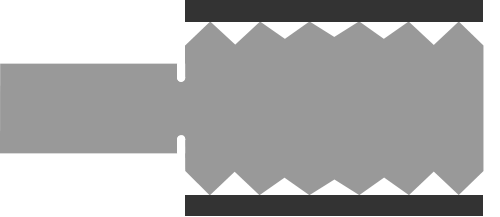

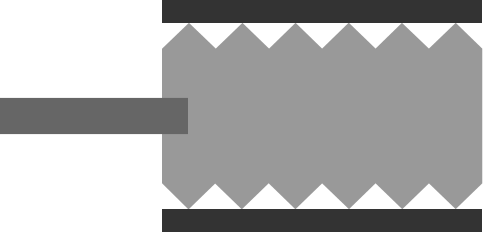

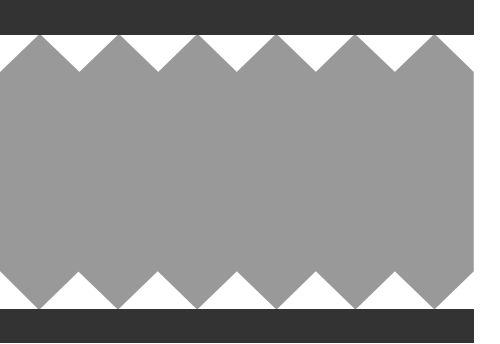

PROFILES Type KPC – grooved gasket with centring ring. Centring ring with and without predetermined breaking point. Type KPC-T grooved gasket with loose centring ring. Type KP – grooved gasket for groove- and spring flanges Type KPC-B – grooved gasket with centring ring and spherical profile
